1042 P

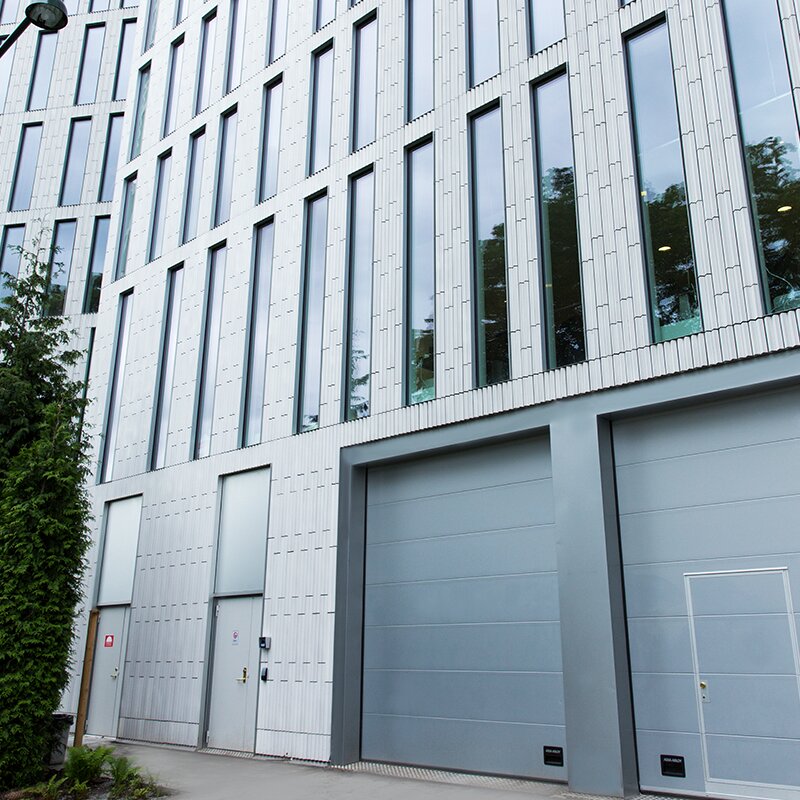

ASSA ABLOY OH1042P (previously Crawford) insulated panel overhead sectional industrial doors.
ASSA ABLOY OH1042P overhead sectional industrial doors are the optimal entrance solution for working facilities. Ideal for businesses looking for reliable, robust, well-insulated and space-saving doors in "operational entrances". This attractive, rugged door performs equally well as an industrial or commercial entrance system. The ASSA ABLOY OH1042P slides up under the ceiling when opened, maximising free space in and around the door opening.
The Flexible Option
Available in different sizes, with many window arrangements; end-users, specifiers and contractors can select from a huge range of locking hardware, opening mechanisms, access control systems and integral pedestrian 'pass door' options.
ASSA ABLOY overhead sectional industrial doors can be tailored to meet almost any requirement.
Exceptional Performance
Class 3 certification for water tightness, wind load and air permeability, combined with excellent U-values guarantees a door that looks better and performs longer. Innovative sealing at the bottom, sides and top contribute to the overall standing as the most effective industrial roller door on the market. Subtle innovations in ASSA ABLOY door designs make a big difference to the buildings they serve and protect.
Attractive Aesthetically
A unique 'diamond' pattern for the external face of the ASSA ABLOY OH1042P panel offers building owners an aesthetically pleasing option. Choose from nine standard colours for the external face, or reinforce a corporate identity by choosing your own factory-painted colour to customise the interior and/or exterior facade.
Internal hinges have been re-engineered to be less obtrusive, so even the internal faces are easier on the eye.
Sustainable, robust and flexible panel overhead sectional doors.
1042 P
ASSA ABLOY OH1042P insulated panel overhead sectional door
- Standard size up to (WxH) [1]: 8000 x 6000 mm
- Panel thickness: 42 mm
- Windows/Pass-door/Access and Automation: Optional
- Wind load, EN 12424 [2]: Class 3 W < 4250, Class 2 W > 4250
- Thermal transmittance, EN 12428 [3]
- Full panel (steel) door: 1,0W/(m2K)
- Full panel (alum.) door: 1,1W/(m2K)
- Water penetration, EN 12425 [4]: Class 3
- Air permeability, EN 12426 [4]: Class 3
[1 ] Other sizes on request
[2] With or without pass-door. Higher wind load classification on request
[3] Door size 4000 x 4000 mm
[4] With or without pass-door
BIM objects
Download these products as BIM objects here:
| Product variations | Description |
|---|---|
|
High lift
|
|
|
Low lift
|
|
|
Standard lift
|
|
|
Vertical lift
|
