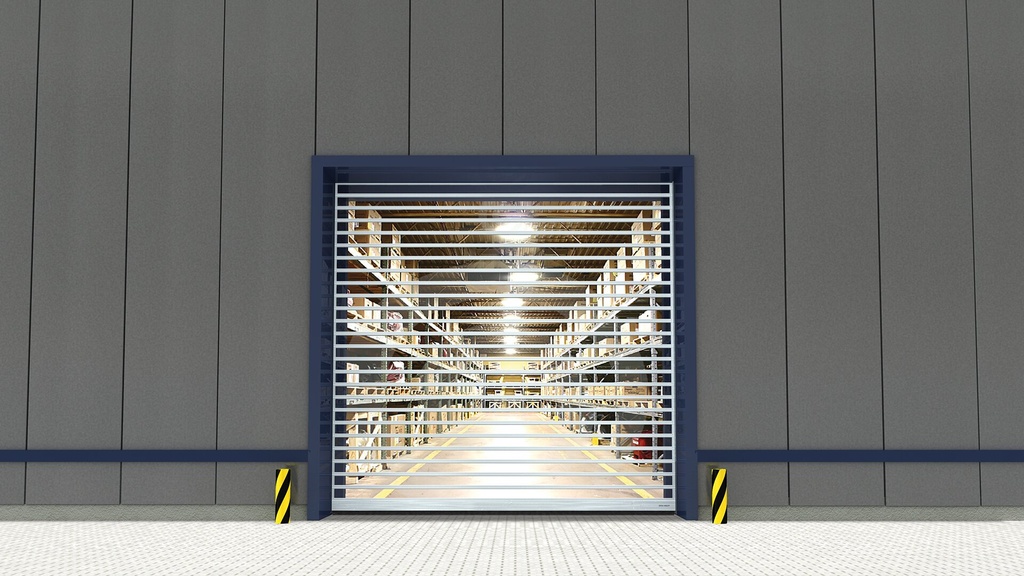

RR-3000


Fast, safe, robust and functional ASSA ABLOY (previously Albany Doors) rigid high speed exterior doors.

ASSA ABLOY RR3000 series combine the greatest functionality with modern design. Their outstanding engineering makes the doors extremely fast, safe, robust and guarantees an extremely long service life with low maintenance needs.

The stylish modern design, achieved by using polished aluminium slats and large windows, ensures an attractive appearance and perfect integration into building facades. The ASSA ABLOY RR3000 series is available in various versions in addition to the standard version illustrated: The ASSA ABLOY RR3000 R for tight spaces, the ASSA ABLOY RR3000 Vision for very high transparency, the ASSA ABLOY RR3000 XXL for large openings, the ASSA ABLOY RR3000 Hurricane for critical wind resistance areas and the ASSA ABLOY RR3000 ISO for enhanced insulation.

ASSA ABLOY RR3000

The ASSA ABLOY RR3000 high speed doors with their nice aluminium curtain are perfect for industrial, commercial and high security applications where speed is important, looks are critical, traffic is frequent, and door safety concerns are paramount. This industrial door’s bold sleek design adds visual appeal to any architectural environment.

The ASSA ABLOY RR3000 metal door construction makes it a security door that is perfect for exterior openings in general manufacturing, automotive dealerships, parking facilities and detention centers - just to name a few applications. It's simple, patented design ensures hundreds of thousands of maintenance-free cycles.

ASSA ABLOY RR3000R

The ASSA ABLOY RR3000R high-speed door is ideal for use where installation space is small, e.g. in underground garages or production and logistics buildings.

The RR3000R has a minimum lintel space, a small installation dimension and a motor built into the side frame. Perforated metal slats are optionally available, which ensure improved air circulation.

ASSA ABLOY RR3000 Vision

The ASSA ABLOY RR3000 Vision high-speed doors are designed for commercial and industrial applications where transparency and full visibility is important, speed is essential, looks are critical, traffic is frequent, and door safety concerns are vital.

The ASSA ABLOY RR3000 Vision has “full view” panels made of clear polycarbonate glass supported by aluminium frames that provide natural light and create a quality environment for employees and customers alike. The bold, eye-catching design includes performance features that add value and ensure safety. The ASSA ABLOY RR3000 Vision offers security and protection for employees and equipment in applications such as manufacturing and logistic buildings, automotive dealerships, parking facilities, distribution centers and more.

ASSA ABLOY RR3000 XXL

The ASSA ABLOY RR3000 XXL can be found in use wherever busy, large doorways are needed. This brilliant fast-running door opens at high-speeds, even in doorways up to 6 m high. The contactless photocell provides the necessary safety. These heavy-duty metal high-speed doors are designed for sizes up to 8 m wide or up to 6 m height, ideal for use in industrial facilities with busy traffic flows.

ASSA ABLOY RR3000 ISO

The ASSA ABLOY RR3000 ISO insulated high speed door combines the superior thermal performance of a sectional door with the fast speeds and operational efficiency of a high performance door. This next generation, hybrid solution from ASSA ABLOY Entrance Systems opens and closes with maximum speed and minimum energy loss.

ASSA ABLOY RR3000 ISO is the perfect choice for distribution centers, warehouses and manufacturing facilities. For distributors, logistic centers, public facility warehouses, general manufactures and much more – the ASSA ABLOY RR3000 ISO can be suited for highly specific and complex business requirements. The 50 mm thick thermal insulated door panel keeps indoor conditions stable and outdoor weather where it belongs. Improved sealing around the perimeter of the door limits air leakage and helps support an increased U-Value.

The ASSA ABLOY RR3000 ISO can optimize the energy-performance of any building and help you meet your sustainability goals. Plus, it’s attractive, modern design can enhance a building’s facade.

Fast, safe, robust and functional with a modern design.

1.00 SR 1.0 SAR 1.00 SR

1.00 SR

    This combination does not exist.

    RR-3000

    ASSA ABLOY RR3000 Series

    • Door dimension (mm) max. depending on door model max.:
    •  ASSA ABLOY RR3000: 5000 mm x 5000 mm
    •  ASSA ABLOY RR3000 R: 6000 mm x 6000 mm
    •  ASSA ABLOY RR3000 Vision: 5000 mm x 5000 mm
    •  ASSA ABLOY RR3000 XXL: 8000 mm x 6000 mm
    • Speed open/close: up to max. 2.3/0.7 m/s depending on door models
    • Wind Resistance Class 3-4 (EN 12424)
    • Door Curtain: - anodized double-walled aluminum lamellas, optionally windows
    •  coloured profiles in RAL as option
    •  perforated sheet slats as option
    •  anodized aluminum with stock proof clear polycarbonate panels, gaining 70 % transparency
    • The side frames are manufactured from galvanized steel and can optionally be powder-coated in wide range of RAL colours.
    • Drive systems: ASSA ABLOY MCC standard, variable frequency drive with soft start / soft stop and absolute encoder
    • Control Unit: user-friendly graphical control
    • Safety: Pre-running photocell and door line photocell, electrical safety contact edge as option
    • Motor Power 1,1 KW
    • Protection IP 55
    • Mains Connections 3L/(N)/PE 380/400/415/440/480V, 50/60 Hz²
    • The door is designed according to the Workplace Directive of the UVV regulations and the harmonized CE Guidelines including the EN 13241-1.
    • As an exterior or interior door also suitable as a laser protection door

    Special:

    DiscDrive technology, the aluminum slats are wound onto winding discs without contact.

    ASSA ABLOY RR3000 ISO High-performance door

    • Door dimension max.: 7000 mm x 6000 mm
    • Speed open/close: up to max. 2.1/0.7 m/s
    • Wind Resistance Class 2-3 (EN 12424), DW >= 5000mm class 3, DW > 5000mm class 2
    • Heat transfer coefficiency: door blade 1,4 W/m²K,
    • complete door min 1,5 W/m²K (depending on door size and specification)
    • Temperature range: -20°C to +40°C (mounting side)
    • Door Curtain: insulated sandwiched slats (50 x 200 mm) with thermally separated metal sheet trays, RAL 9006, painting in RAL colours as option
    • Window slats optional, framed with anodized aluminium
    • Control systems: Albany MCC standard, variable frequency drive with soft start / soft stop and absolute encoder
    • Motor Power 1,1 KW
    • Protection IP 55
    • Mains Connections 3L/(N)/PE 380/400/415/440/480V, 50/60 Hz²
    • Safety features: Light curtain as standard, Egress Break Release as option
    • The door is designed according to the Workplace Directive of the UVV regulations and the harmonized CE Guidelines including the EN 13241-1.

    Special:

    Thermal Insulation, 50 mm thick insulated door panel. Minimal heat loss. No condensation. Outstanding U-Value.

    Smart Header Design: The design prevents door slats from touching one another as door opens and close for fast, smooth and quiet operations.

    BIM objects

    Download these products as BIM objects here:

    ASSA ABLOY RR3000 XXL high-speed door

    ASSA ABLOY RR3000 ISO high-speed door

    Product variations Description
    RR3000
    Patented DiscDrive for max. lifetime and has an opening speed up to 2,2 m/s
    RR3000 ISO
    Patented V-Drive for heavy traffic, increased insulation and an opening speed up to 2,2 m/s.
    RR3000 Vision
    Max. transparency and light transmission (clear Polycarbonate Curtain) and an opening speed up to 2 m/s
    RR3000 XXL
    Up to 8 m wide or 6m high and an opening speed up to 1,8 m/s
    RR3000 R
    Low Headroom design and an opening speed up to 2,2 m/s
