RR-392
ASSA ABLOY (previously Albany Doors) RapidRoll fast acting doors for frequent traffic, secure access and minimal energy loss.
ASSA ABLOY RapidRoll high speed exterior doors significantly impact building sustainability, security and cosmetics. As the main barrier between the inside of the factory and the outside of the factory, exterior doors need to resist fierce weather conditions whilst providing reliability, security and cosmetic appeal.
Depending on the region and building design, the demand may be for the most modern insulation and material technology, hurricane-proof doors or special designer doors to highlight and accentuate the building facade. Exterior doors range in all sizes of weather-resistant fabric doors to solid burglar-resistant variations.

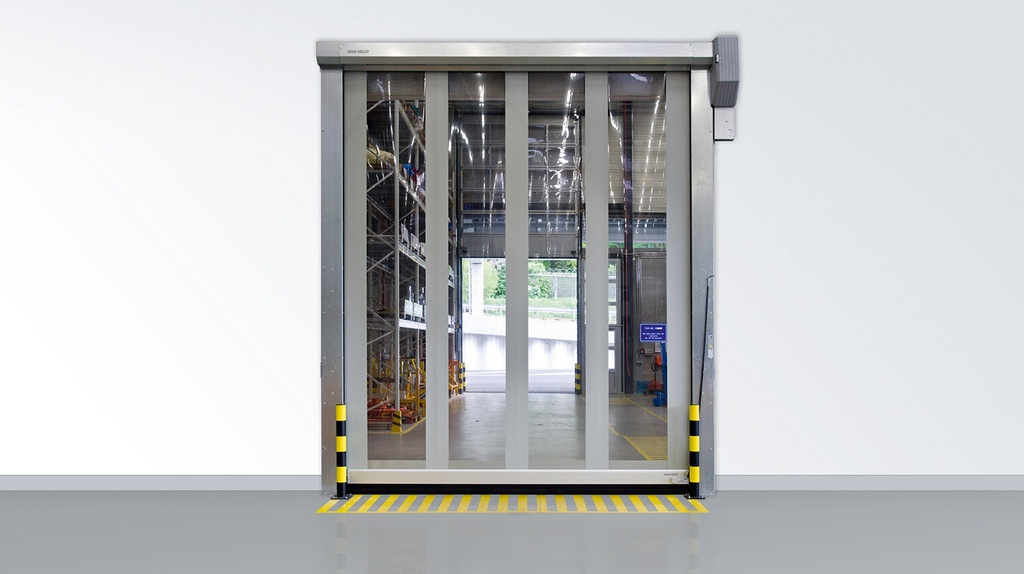

ASSA ABLOY RR392
The ASSA ABLOY RR392 is ideally suited for heavily-used openings and adverse conditions in both external and internal areas. The door is weather-proof and provides resistance to heavy wind loads up to class 2 (EN 12424). The door‘s side frames and the top roll cover are made from anodised aluminium. The door curtain option can be choosen from PVC or heavy duty RollTex® fabric.
Frequent traffic, secure access, minimal energy loss.
RR-392
ASSA ABLOY RR392
- Modular design concept enables the door to be custom configured for a variety of applications
- Door dimension max.6000 x 6000 mm
- Speed open/close: up to max. 2.2/0.9 m/s
- Wind Resistance Class up to 2 (EN 12424)
- Door Curtain: made of extremely durable and tear resistant material, other material like PVC curtain with coloured reinforcement stripes as option
- Side frames made of anodised aluminium
- A knock-out capability is available as option
- Balancing and tensioning system provides smooth operation and controls door movement by adding constant tension to the door curtain
- Control systems: ASSA ABLOY MCC frequency converter control system ensure smooth and dynamic motion.
- Display unit with foil keys and graphical display is integrated in the side frame
- Motor Power 1.1 KW
- Protection IP 55
- Mains connections 3L/(N)/PE 380/400/415/440/480V, 50/60 Hz²
- Safety features: Electrical safety contact edge and a door line photocell
- The door is designed according to the Workplace Directive of the UVV regulations and the harmonized CE Guidelines including the EN 13241-1.
For specification of the specific configurations see the technical data sheet.
