DL6120 TA Tele Auto Dock leveler
Enable optimal load utilization of the vehicle bed area with ASSA ABLOY hydraulic telescopic-lip dock levellers
Hydraulic telescopic-lip dock levellers have a movable telescopic lip, which provides a larger contact area between vehicle bed and dock leveller. Thanks to that, they can be precisely positioned on the vehicle bed for optimal load utilization and improved safety. Preventive maintenance is easy and fast to secure functionality. All hydraulic telescopic-lip dock levellers are easy to operate.
The innovative and unique ASSA ABLOY 950 series docking control system offers complete control of the dock leveller, dock shelter and door, all in one control unit. A few self-explanatory buttons make the system easy to operate. Separate steering units or complex wiring are no longer needed to operate all equipment from a single control panel.
ASSA ABLOY DL6120TA (formerly Crawford) Teledock Autodock - Loadhouse dock levellers
ASSA ABLOY DL6120TA Teledock Autodock has a self-supporting frame for easy integration with a building. It forms a base for a complete ASSA ABLOY Loadhouse outside the building. An optional Ergonomic Lip is available.
Most flexible leveller, facilitating optimal load utilisation.
DL6120 TA Tele Auto Dock leveler
ASSA ABLOY DL6120TA Teledock Autodock
Product ID: DL6120TA
Normal length: 2000, 2450, 3000 mm (other sizes on request)
Normal width: 3300, 3500, 3600, 3750 mm
Load capacity: 60 kN (6 tonnes)
Vertical working range: Rise above dock up to 520mm, Fall below dock down to 470mm
Platform tear-plate thickness: 8/10mm
Max point load leveler platform: 6,5 N/mm² (8 mm tear plate)

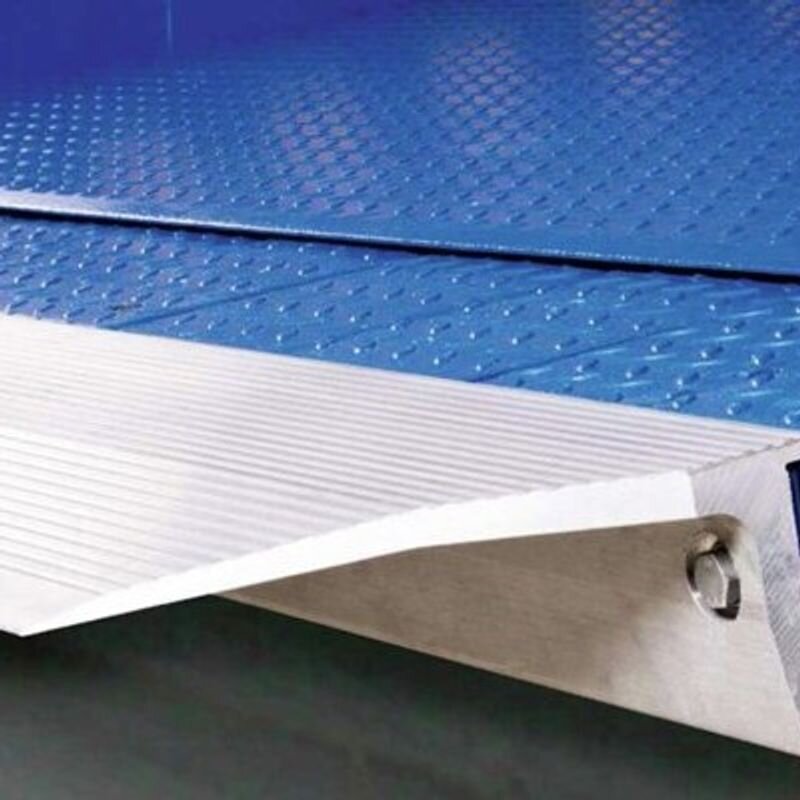

Lip type and length: telescopic, 500/1000 mm ergonomic lip, 345 mm
Lip material: steel or aluminium
Lip option: tapered lip / Retracting tongues
Control unit protection class: IP 54
Temperature range hydraulic oil: -20°C - +60°C
European standard: EN1398 dock leveler
