DL6120T Tele Dock Leveler 6t
Enable optimal load utilization of the vehicle bed area with ASSA ABLOY hydraulic telescopic-lip dock levellers
Hydraulic telescopic-lip dock levellers have a movable telescopic lip, which provides a larger contact area between vehicle bed and dock leveller. Thanks to that, they can be precisely positioned on the vehicle bed for optimal load utilization and improved safety. Preventive maintenance is easy and fast to secure functionality. All hydraulic telescopic-lip dock levellers are easy to operate.
The innovative and unique ASSA ABLOY 950 series docking control system offers complete control of the dock leveller, dock shelter and door, all in one control unit. A few self-explanatory buttons make the system easy to operate. Separate steering units or complex wiring are no longer needed to operate all equipment from a single control panel.
ASSA ABLOY DL6120T (formerly Crawford) Teledock

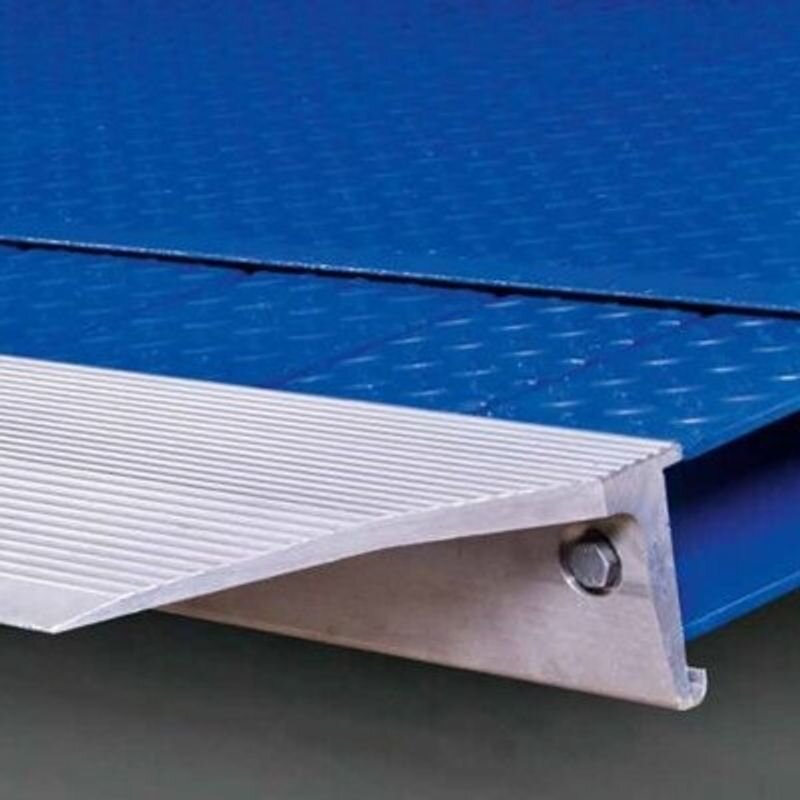

ASSA ABLOY DL6120T Teledock is a universal solution and the most flexible docking system. It is suitable for every loading situation – regardless of its complexity. An optional Ergonomic lip offers completely bump free transition from the leveller platform to the vehicle/trailer bed. This makes the ASSA ABLOY DL6120T Teledock ideal for operations with electrical pallet trucks without spring bumpers.
Most flexible leveller, facilitating optimal load utilisation.
DL6120T Tele Dock Leveler 6t
ASSA ABLOY DL6120T Teledock
- Product ID: DL6120T
- Normal length: 2000, 2500, 3000, 3500, 4000, 4500 mm
- Normal width: 1750, 2000, 2200, 2250 mm
- Load capacity: 60 kN (6 tonnes)
- Vertical working range: Rise above dock up to 660mm, Fall below dock down to 440mm
- Platform tear-plate thickness: 8/10mm
- Max point load leveler platform: 6,5 N/mm² (8 mm tear plate)
- Lip type and length: telescopic, 500/1000 mm ergonomic lip, 345 mm
- Lip material: steel or aluminium
- Lip option: tapered lip / Retracting tongues
- Control unit protection class: IP 54
- Temperature range hydraulic oil: -20°C - +60°C
- European standard: EN1398 dock levellers
