DL-6121TA


Enable optimal load utilization of the vehicle bed area with ASSA ABLOY hydraulic telescopic-lip dock levellers

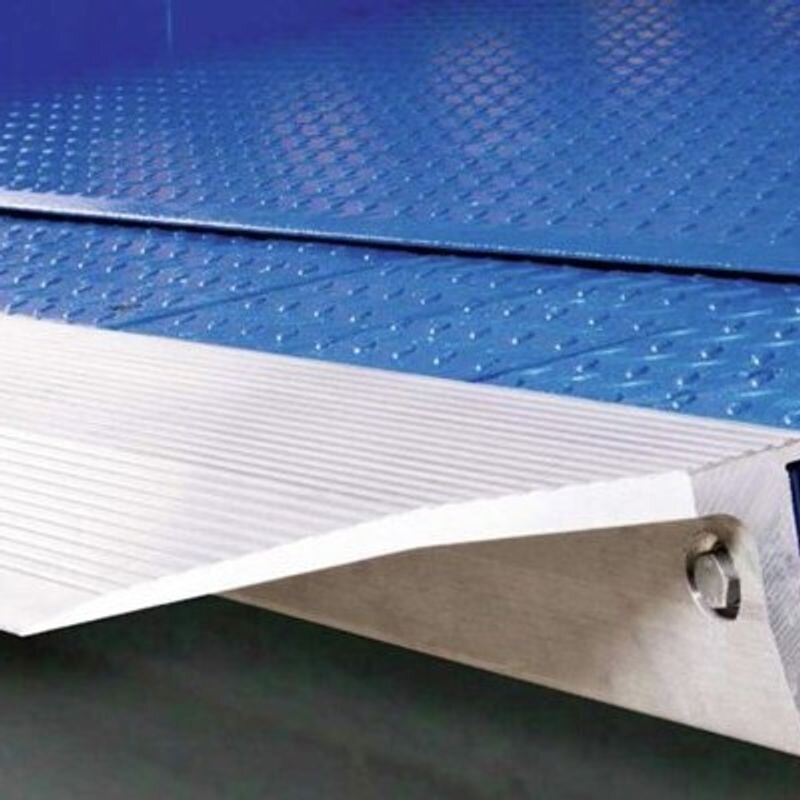

Hydraulic telescopic-lip dock levellers have a movable telescopic lip, which provides a larger contact area between vehicle bed and dock leveller. Thanks to that, they can be precisely positioned on the vehicle bed for optimal load utilization and improved safety. Preventive maintenance is easy and fast to secure functionality. All hydraulic telescopic-lip dock levellers are easy to operate.

The innovative and unique ASSA ABLOY 950 series docking control system offers complete control of the dock leveller, dock shelter and door, all in one control unit. A few self-explanatory buttons make the system easy to operate. Separate steering units or complex wiring are no longer needed to operate all equipment from a single control panel.

ASSA ABLOY DL6121TA (formerly Crawford) Teledock Autodock

ASSA ABLOY DL6121TA Teledock Autodock has a self-supporting frame for easy integration with a building. It forms a base for a complete ASSA ABLOY Loadhouse outside the building. It is a heavy-duty dock leveller with a load capacity of 100 kN or optional 150 kN. Robust and reliable construction guarantees high performance during the tough handling of high loads.

Show More Show Less

Most flexible leveller, facilitating optimal load utilisation.

1.00 SR 1.0 SAR 1.00 SR

1.00 SR

    This combination does not exist.

    DL-6121TA


    ASSA ABLOY DL6121TA Teledock Autodock

    • Product ID: DL6121TA
    • Normal length: 2000, 2450, 3000 mm (other sizes on request)
    • Normal width: 3300, 3500, 3600, 3750 mmLoad capacity: 100 kN (10 tonnes), 150kN (15 tonnes)
    • Vertical working range 100 kN; Rise above dock up to 410 mm, Fall below dock down to 460 mm
    • Vertical working range 150 kN; Rise above dock up to 490 mm, Fall below dock down to 390 mm
    • Platform tear-plate thickness 100kN: 8/10 mmPlatform tear-plate thickness 150kN: 10/12 mm
    • Max point load leveler platform: 6,5 N/mm² (8 mm tear-plate & 10 mm tear-plate)
    • Lip material and length: Steel, 500/1000 mm
    • Control unit protection class: IP 54
    • Temperature range hydraulic oil: -20°C - +60°C
    • European standard: EN1398 dock levellers

    BIM objects

    Download these products as BIM objects here:

    Environmental Product Declaration

    Available for this product download here:
