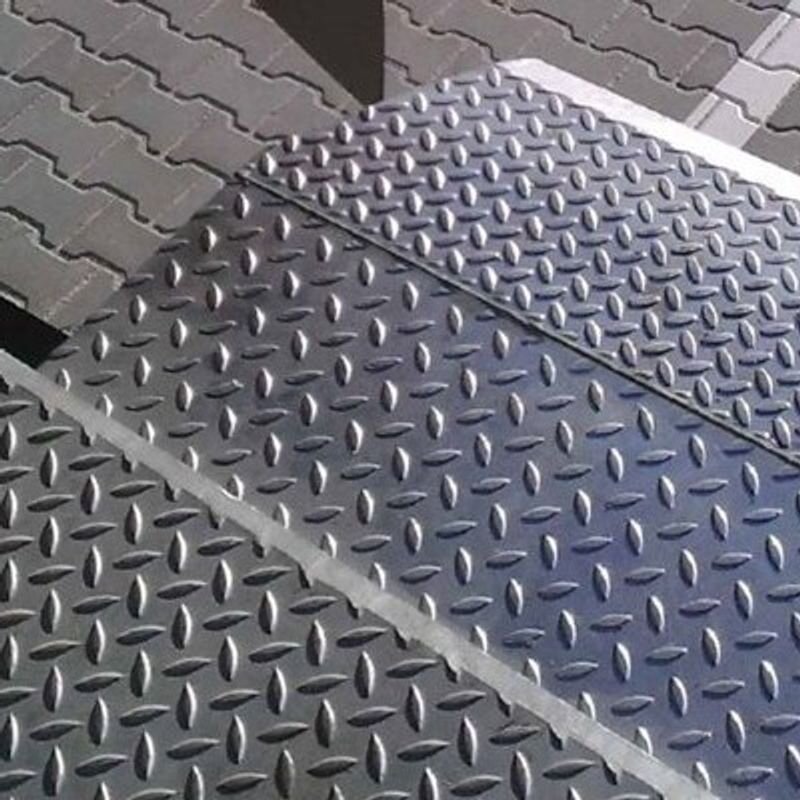

DL-6121 T 100 &150
Enable optimal load utilization of the vehicle bed area with ASSA ABLOY hydraulic telescopic-lip dock levellers
Hydraulic telescopic-lip dock levellers have a movable telescopic lip, which provides a larger contact area between vehicle bed and dock leveller. Thanks to that, they can be precisely positioned on the vehicle bed for optimal load utilization and improved safety. Preventive maintenance is easy and fast to secure functionality. All hydraulic telescopic-lip dock levellers are easy to operate.
The innovative and unique ASSA ABLOY 950 series docking control system offers complete control of the dock leveller, dock shelter and door, all in one control unit. A few self-explanatory buttons make the system easy to operate. Separate steering units or complex wiring are no longer needed to operate all equipment from a single control panel.
ASSA ABLOY DL6121T (formerly Crawford) Teledock 100 & 150
ASSA ABLOY DL6121T Teledock 100 is a heavy-duty telescopic-lip dock leveller with a load capacity of 100 kN (10 tonnes) or optional 150 kN (15 tonnes). Robust and reliable construction guarantees high performance during the tough handling of heavy and uneven loads.
Most flexible leveller, facilitating optimal load utilisation.
DL-6121 T 100 &150
ASSA ABLOY DL6121T Teledock 100 & 150
- Product ID :DL6121T
- Normal length 100kN: 2000, 2500, 3000, 3500, 4000, 4500 mm
- Normal length 150kN: 2000, 2500, 3000 mm
- Normal width: 2000, 2200 mmLoad capacity: 100 kN (10 tonnes), 150kN (15 tonnes)
- Vertical working range 100 kN: Rise above dock up to 530 mm, Fall below dock down to 440 mm
- Vertical working range 150 kN: Rise above dock up to 460 mm, Fall below dock down to 390 mm
- Platform tear-plate thickness 100kN: 8/10 mm
- Platform tear-plate thickness 150kN: 10/12 mm
- Max point load leveler platform: 6,5 N/mm² (8 mm tear-plate & 10 mm tear-plate)
- Lip material and lenght: Steel, 500/1000 mm
- Control unit protection class: IP 54
- Temperature range hydraulic oil: -20°C - +60°C
- European standard: EN1398 dock levelers
Environmental Product Declaration
Available for this product download here:
